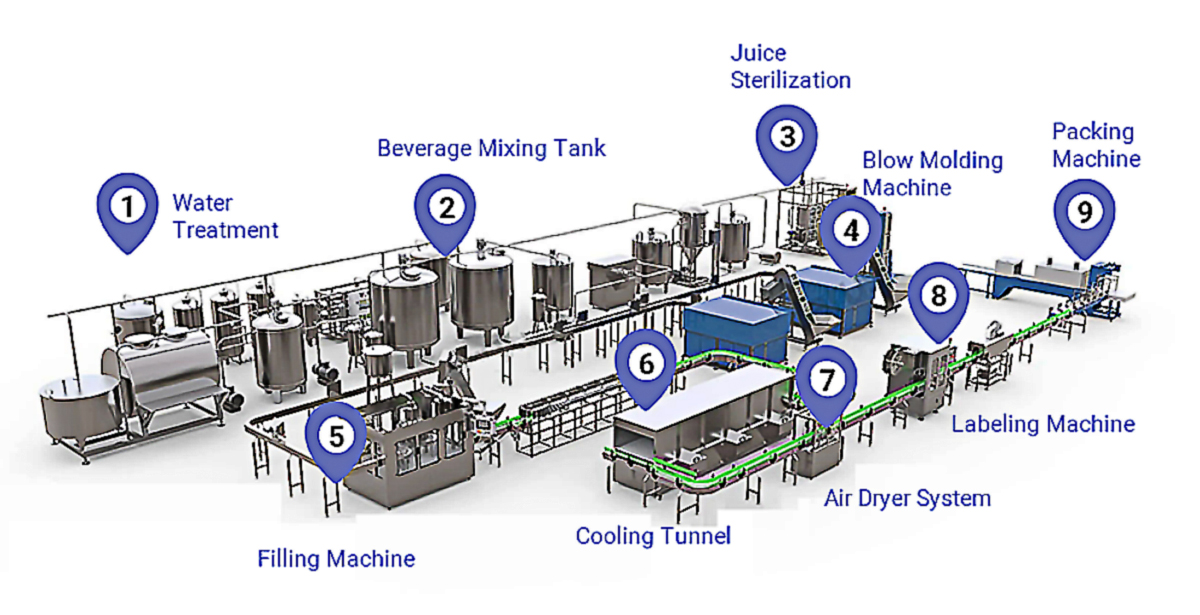

Juice / Carbonated Filling Production Line

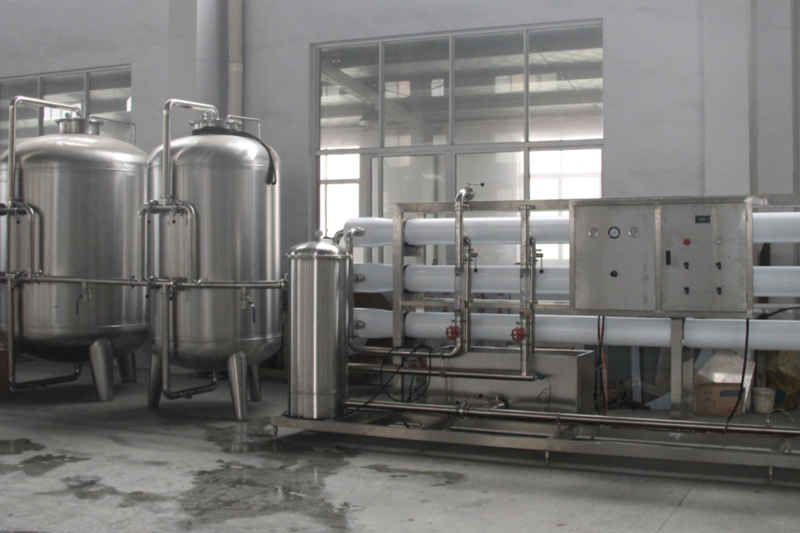

The system key part is reverse osmosis membranes that is from the America HYDRANATICS, it has a good performance to eliminate salts and the high pressure pump is from a high quality pump producer in China, it’s easy to handle for its simple structure. The source water, in the case that the TDS is less than 400mg/L, can reach the national standards totally after treatment by this device, it’s the most ideal equipment for water treatment.

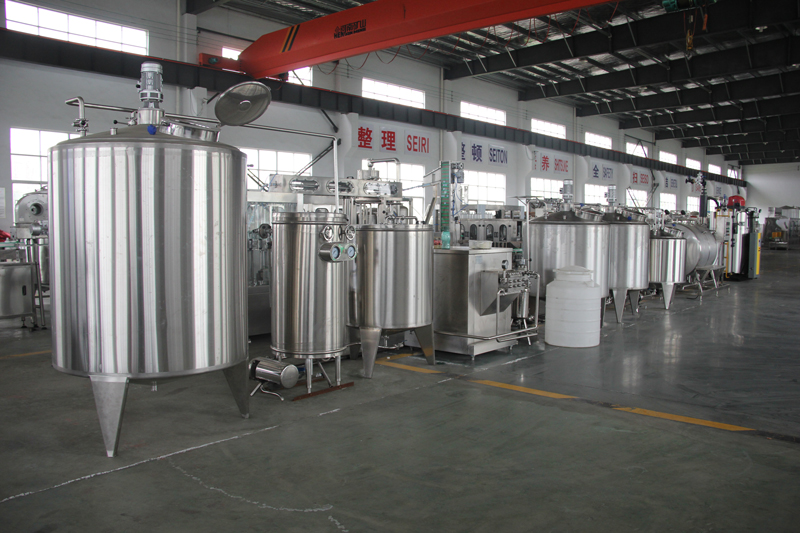

Mixing milk, juice, or any other viscous liquid Used as liquid storage, liquid mixing, temporary storage, etc. It is also ok to mix liquid and powder. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmaceutical, chemical industry and biological engineering etc.

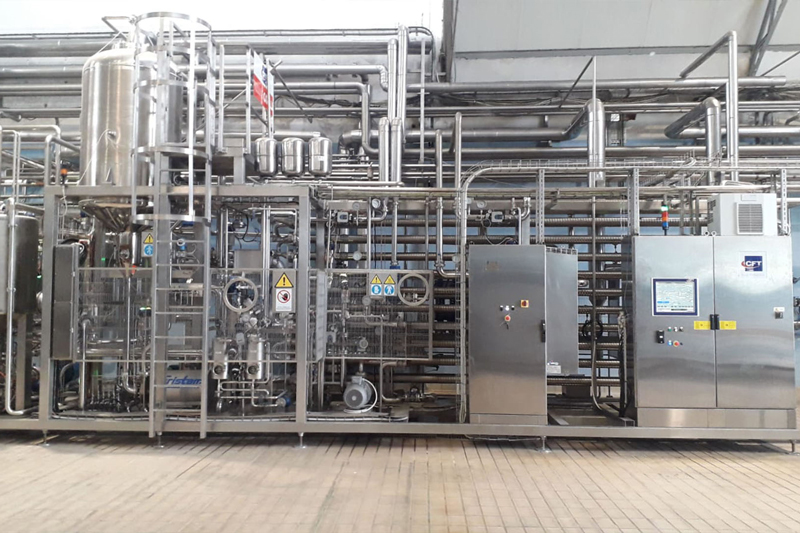

This equipment adopts new high-efficiency BR and BP plate heat exchangers widely used in modern engineering field. Through the non-contact heat exchange between materials and superheated steam (or superheated water), the fluid materials can reach the required sterilization temperature in a short time.

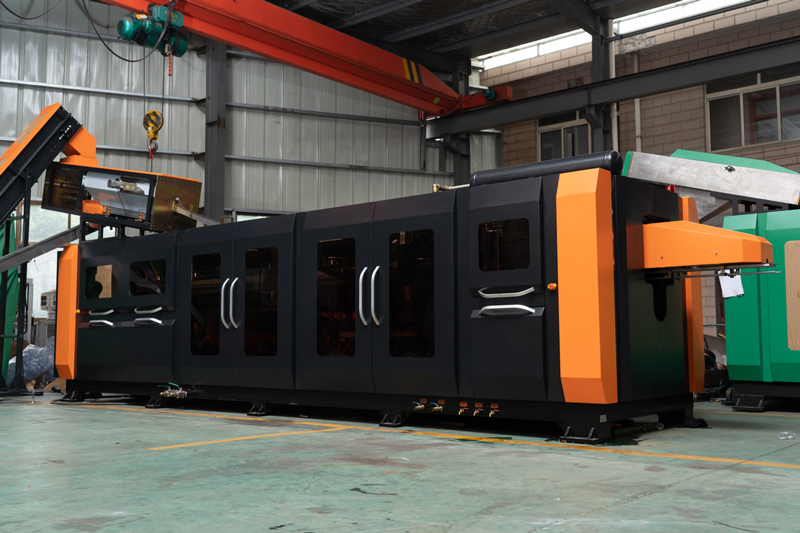

Bottle blowing machine is used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles. Proman Machinery K series linear bottle blowing machine stretches the preform by controlling the stretching rod by servo motor. The advantage is that it can be stretched in sections, firstly position the preform, ensure the verticality of the preform when stretching then secondary stretching. Ensure uniformity and consistency of stretch of each preform. At the same time, the blower is faster and less energy consumed.

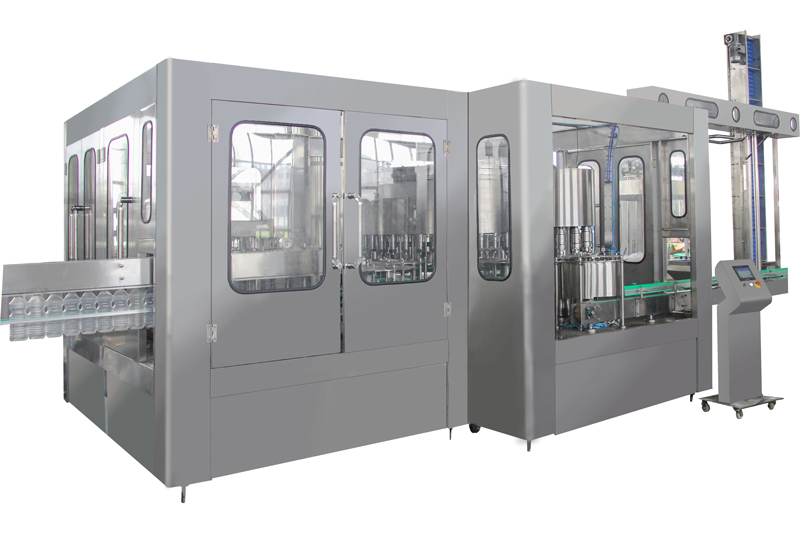

It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products. All electric parts use the world famous brand Siemens, Autonics, Omron, 1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage 2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime 3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption 4 / Hygiene improvement through volume control and contactless filling 5 / Automatic dummy bottles: Safer, easier cleaning procedures 6 / Automatic bottle changeover improves uptime.

The juice after high-temperature sterilization needs to be cooled after filling before subsequent packaging.

This equipment adopts transporting device of fully automatic helicoid. The containers come to the machine entry by bottle conveyer chain; then come to bottle entry star wheel by separating screw distance. The containers clamped by the star wheel come to the cross of the circled plate, the device of up-pressing bottle and down-holding bottle matches the fixed container, moving on the helicoid plate to complete the labeling process. Then passing from the bottle exit star wheel, complete the whole process of container transportation.

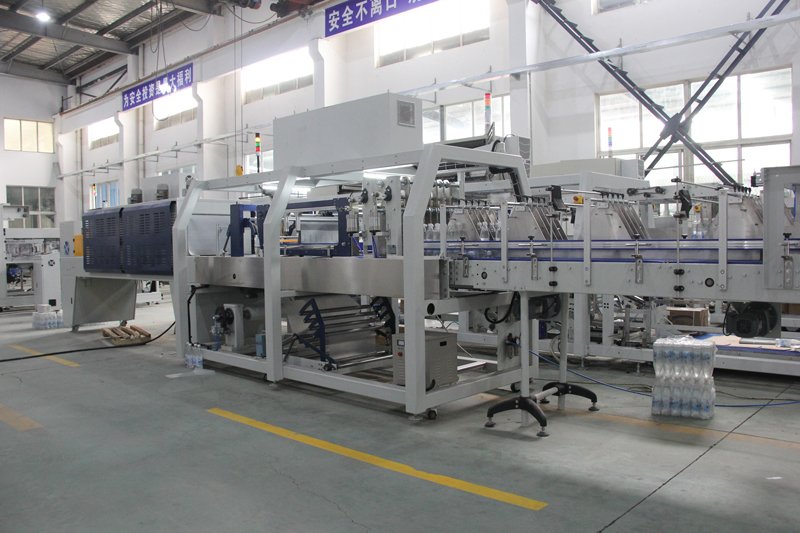

Automatic bottle shrink wrapping machine is suitable for wrapping of such products as pop-top, mineral water, bottles beer, drinks etc without bottom tray, working with PE film shrink tunnel to pack the goods perfectly, the whole production process adopts the germany advanced technics, and the main parts are imported from international famous companies, Capacity stable and using long-time, it consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine.

The system key part is reverse osmosis membranes that is from the America HYDRANATICS, it has a good performance to eliminate salts and the high pressure pump is from a high quality pump producer in China, it’s easy to handle for its simple structure. The source water, in the case that the TDS is less than 400mg/L, can reach the national standards totally after treatment by this device, it’s the most ideal equipment for water treatment.

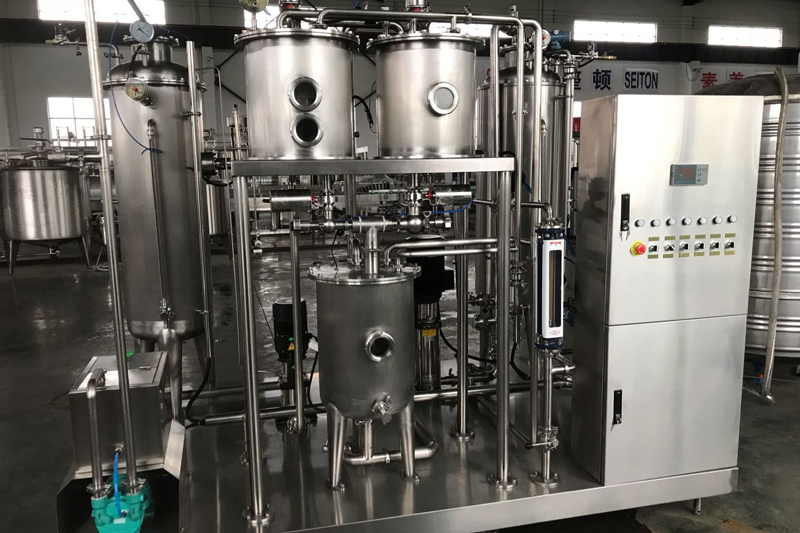

QHS series Carbon Dioxide Mixer mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology—static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system.

Bottle blowing machine is used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles. Proman Machinery K series linear bottle blowing machine stretches the preform by controlling the stretching rod by servo motor. The advantage is that it can be stretched in sections, firstly position the preform, ensure the verticality of the preform when stretching then secondary stretching. Ensure uniformity and consistency of stretch of each preform. At the same time, the blower is faster and less energy consumed.

It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products. All electric parts use the world famous brand Siemens, Autonics, Omron, 1 / Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage 2 / Optimum uptime: 30 % reduction in changeover and maintenance downtime 3 / Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption 4 / Hygiene improvement through volume control and contactless filling 5 / Automatic dummy bottles: Safer, easier cleaning procedures 6 / Automatic bottle changeover improves uptime.

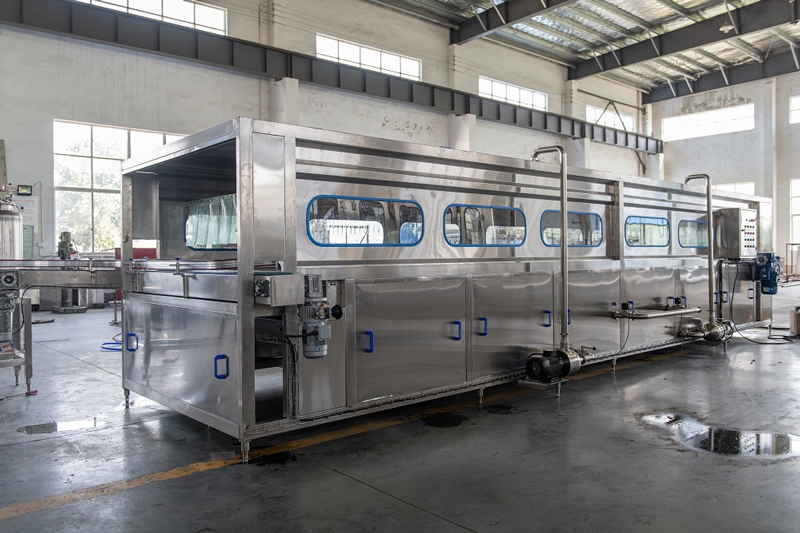

If the carbonated drink is filled in summer's room temperature which is much higher than the usual carbonated drinks filling temperature ( 3degree), moisture in the air will be condensed on the bottle which will bring troubles to the downstream packaging. So after the filling machine, there must be a bottle warmer to heat the bottle to the room temperature. The warmer is usually a tunnel type shower. It heats the bottle through spraying hot water to the bottle.

This equipment adopts transporting device of fully automatic helicoid. The containers come to the machine entry by bottle conveyer chain; then come to bottle entry star wheel by separating screw distance. The containers clamped by the star wheel come to the cross of the circled plate, the device of up-pressing bottle and down-holding bottle matches the fixed container, moving on the helicoid plate to complete the labeling process. Then passing from the bottle exit star wheel, complete the whole process of container transportation.

Automatic bottle shrink wrapping machine is suitable for wrapping of such products as pop-top, mineral water, bottles beer, drinks etc without bottom tray, working with PE film shrink tunnel to pack the goods perfectly, the whole production process adopts the germany advanced technics, and the main parts are imported from international famous companies, Capacity stable and using long-time, it consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine.
