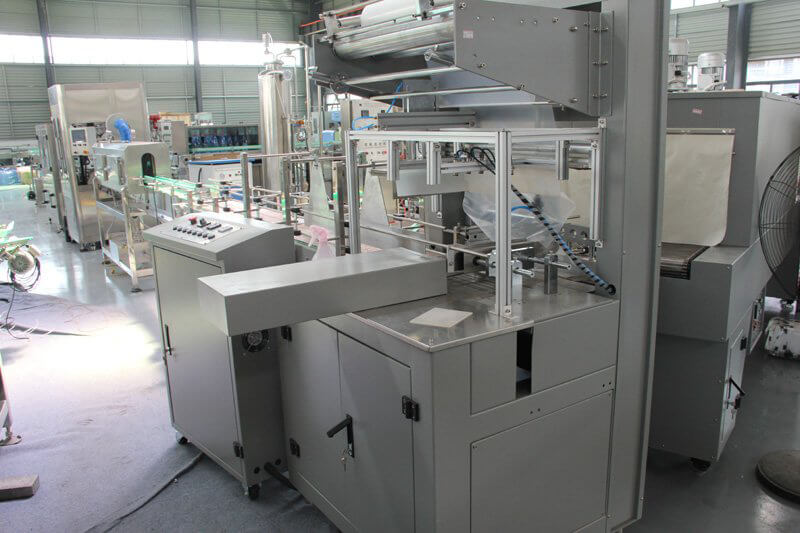

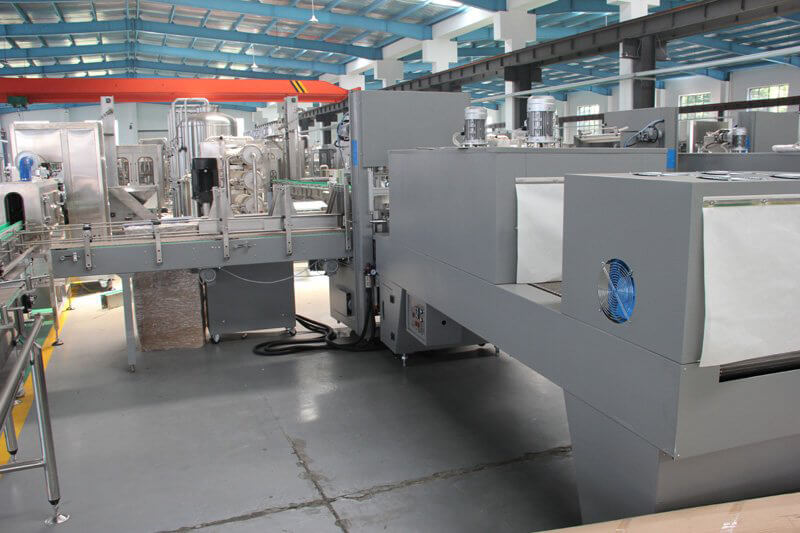

Auto Shrink Wrapping Machine

Our PE Film Shrink Wrapping Packing machine is used in the combination package of mineral water, beverage, beer, liquid, infusion bottle and so on.
The linear bottle feeding method has small space occupation, convenient layout, stable conveying and high efficiency; the sealing adopts the advanced structure of heat sealing and eagerness, the sealing is firm, the edges are neat, the stitching performance is good, and there is no flash.

product details

Product Introduction

In today’s fast-paced manufacturing and packaging environment, efficiency and reliability are critical. The company continually seeks innovative solutions to streamline operations while ensuring product integrity. The automatic linear PE film shrink packaging machine is a game changer in packaging technology. This state-of-the-art machine is designed to meet the diverse needs of industries ranging from food and beverages to pharmaceuticals and consumer goods.

Outline dimension of the equipment:L5050*W3300*H2100mm

·The largest dimension of the wrappage:L600*W400*H350mm

·Material of shrink film:PE

·Thickness of shrink film:0.03-0.15mm

·The highest temperature of the heat shrink furnace: 160-260。

Can adjust freewill.

·The maximum production per minute:0-12 pakage

·Equipment capacity: 20Kw

·Actual power consumption:15Kw/hour

·Pressure request:220V

·Equipment weight:1.2T

·Machine reuired air pressure of the compressor:0.6-0.8Mpa

1. Packing terms:

(1)350/500/550/600ML large package: 4*6, 4*5

Small package: 3*4, 3*5

(2)1L/1.5L/2L/2.5L large package:3*3,3*4

Small Package:2*2,2*3

2. For the pop can packing ,we advise packing with pallet,it will be steady.

3. Packing speed:8-15 bundles/minute

4. Satisfy the speed of the liquid filling machine.

(1)350/500/550/600ML large package :4*6, 4*5, (12000-15000 bottles/hour)

Small package:2*3,2*2(3000-4000bottles/hour).

5. Material of packing:the wideth of PE heat shrink film

(200-600mm),thickness(0.08-0.12mm)

Technical Data

Model	WD-150
Capacity(500ML)	12000BPH
Voltage	380/220
Suitable Bottle	PET Bottle ,Plastic Bottle
Diameter of bottle	Diameter: 55-110 MM
Height Of Bottle	150-310MM
Suitable Cap	Plastic Screw Cap
Weight	1200kg
Main Motor Power	16kw
