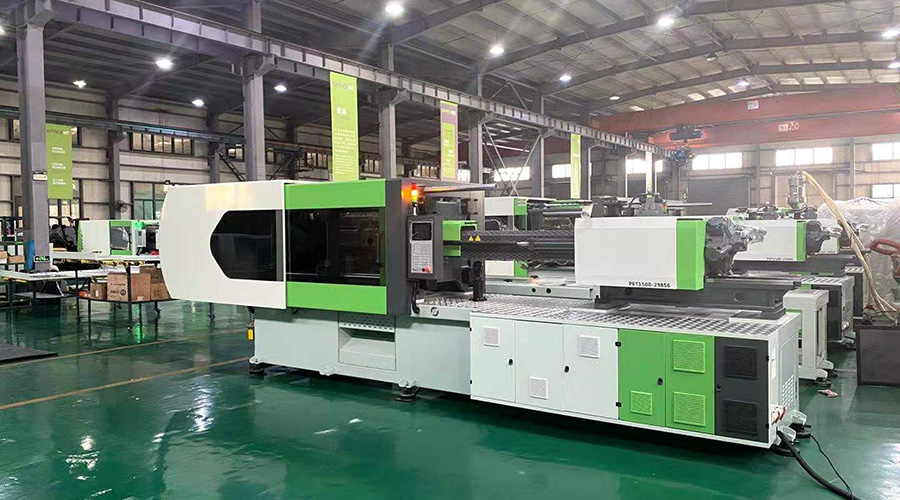

PET1800 Preform Injection Molding Machine

Introducing the automatic dedicated plastic filling water bottle manufacturing PET preform plastic PE bottle cap injection molding machine, a state-of-the-art solution designed for efficient production of water bottles and caps. This advanced machine combines cutting-edge technology with user-friendly features, making it an important asset for manufacturers in the beverage industry.

product details

Product Introduction

Automatic special plastic filling water bottle manufacturing PET bottle preform plastic PE bottle cap injection molding machine is specially designed to meet the growing needs of the beverage industry. As bottled water and other beverages become more popular, manufacturers need efficient and reliable machines to meet production needs. This machine stands out in the market with its innovative design and powerful performance.

High Production Capacity

One of the outstanding features of this machine is its high production capacity. It can produce thousands of PET preforms and caps per hour, making it ideal for mass production. This efficiency not only increases productivity but also helps manufacturers fulfill large orders within tight deadlines without compromising quality.

Accuracy and Quality Guaranteed

Quality is a top priority in the beverage industry and this machine excels in this regard. The precision engineering involved in its design ensures that every bottle and cap produced meets strict quality standards. The machine uses advanced molding technology to ensure consistency in size and shape, thereby reducing the possibility of defects and ensuring customer satisfaction.

Improve energy efficiency and save costs

In today’s competitive market, operating costs can significantly impact profitability. Automatic special plastic filling water bottle manufacturing PET bottle preform plastic PE bottle cap injection molding machine adopts energy-saving design to minimize power consumption. This not only reduces production costs but is also in line with global sustainability efforts, making it an environmentally friendly choice for manufacturers.

User friendly operation

The machine comes with a user-friendly interface that simplifies the operation process. Operators can easily monitor production parameters, make adjustments and solve problems with minimal training. This ease of use reduces downtime and increases overall productivity, allowing manufacturers to focus on scaling their operations.

VERSATILE AND ADAPTABLE

Flexibility is another key advantage of this machine. It can adapt to various bottle sizes and cap designs and is suitable for a variety of products. Whether you produce standard water bottles or specialized beverage containers, this machine can be adapted to your specific requirements, providing a versatile solution for your production line.

In summary

In summary, the Automatic Special Purpose Plastic Filling Water Bottle Manufacturing PET Preform Plastic PE Bottle Cap Injection Molding Machine is a game changer for manufacturers in the beverage industry. With its efficiency, precision engineering, energy-saving features, user-friendly operation and versatility, it is the perfect investment for businesses looking to increase their production capacity. Embrace the future of water bottle manufacturing and enhance your production line with this extraordinary machine.

Technical Data

Item	BST-700A		BST-950A			BST-1300A			BST-1600A			BST-2000A			BST-2400A			BST-3000A			BST-3800A			BST-4800A
screw diameter	32	35	30	35	40	35	40	45	45	50	55	50	55	60	55	60	65	60	65	70	65	70	75	70	75	80
screw l/d ratio(l/d)	20	18.8	24.5	21	18.4	24	21	18.7	23.3	21	19.1	23.1	21	19	22.9	21	19.4	22.7	21	19.5	22.6	21	19.6	22.6	21	19.7
theoretical shot volume(mm鲁)	113	135	113	154	201	173	226	286	358	442	534	491	594	707	665	791	921	848	995	1154	1061	1231	1413	1346	1545	1758
shot weight(ps)(g)	101	121	103	140	183	158	206	260	326	402	486	447	540	643	605	720	845	772	905	1050	966	1120	1286	1225	1406	1600
injection pressure(mpa)	232	194	249	183	140	235	142	142	219	178	147	215	178	149	210	176	150	207	176	152	203	175	152	201	175	154
theoretical injection rate(ps)(g/s)	62	72	67.5	91.8	120	110	181	182	142	175	212	145	175	208	176.5	210	245	241	283	328	308	357	410	370	423	484
plasticising capacity(g/s)	11	12	8.3	12.5	18	13.8	19.7	27.1	20.1	26.5	34.2	22.5	28.7	35.4	26.4	32.5	40	35.2	43.3	51.8	50.6	60.5	71.5	60.4	71.4	83.7
max.screw rotate speed(t/min)	220		260			250			200			170			150			150			150			150
injection stroke(mm)	140		160			180			225			250			280			300			320			350
clamping unit
max.clamping force(kn)	700		950			1300			1600			2000			2400			3000			3800			4800
max.opening stroke(mm)	290		340			400			460			500			530			590			680			770
space betweeen(mm)	320*320		360*360			420*420			480*480			505*505			555*555			610*610			680*680			760*760
mould height	120-300		135-380			160-440			180-500			190-530			200-570			220-630			250-710			280-790
max.daylight(mm)590	590		720			840			960			1030			1100			1220			1390			1560
other
pump motor power(kw)	9		11			13			15			18.5			22			30			37			45
heating power	6.2		7.3			9.2			13.6			16.6			16			16			16			16
heating zone	4		4			4			4			4			18.5			22			25			28
net height	2.7		3.2			4.3			5.6			6.4			8			11			15			19.8
oil tank capacity(t)	230		260			360			420			420			440			560			820			850
international designation(l)	700-230		950-280			1300-410			1600-785			2000-1060			2400-1390			3000-1750			3800-2150			4800-2710

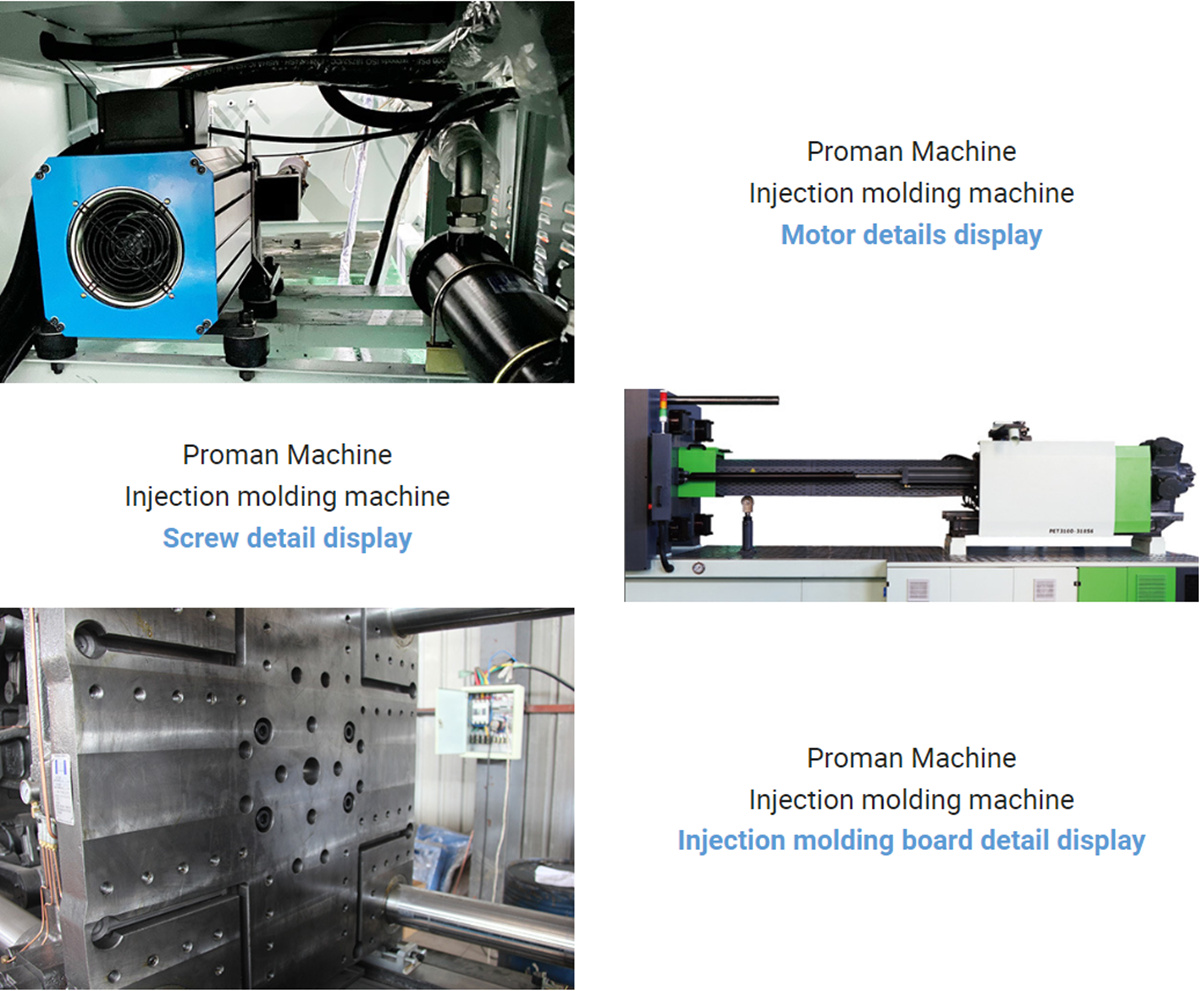

Detailed Images

Specifications

Injection molding machine

1. Big tie bar space and shot weight capacity

2. Most famous component parts

3. Perfect after-service

FEATURES

- A variety of text can be switched.

- Manual, semi-automatic and fully automatic mode.

- Automatic movement monitoring with alarm and fault diagnosis.

- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

CONTROL SYSTEM

All-digital control system uses dedicated controller, multiple CPU processing division, a multi-functional automatic fault detection, alarm system, certificates 99 mold of processing procedures, with remote control interface. System is of high stability and responsiveness. System uses color LCD, man made interface for easy operation and with a number of peripheral interfaces.
